Part Number: PS-406-HGULTRA
UL 2930 compliance and agency listing, integrated locking safety covers and a 6 ft. cord make this medical-grade power strip ideal for standalone use in all areas inside and outside of patient care vicinities.
- Antimicrobial protection helps prevent the growth of bacteria, viruses, fungi, mold and mildew
- Approved for standalone use in all patient care vicinities
- Complies with UL 2930 and NFPA 99 specifications
- Patented protection circuit guards against shock hazards
- 4 NEMA 5-15R-HG hospital-grade outlets with locking safety covers
- This product is covered by a Lifetime Limited Warranty (coverage details)
Overview

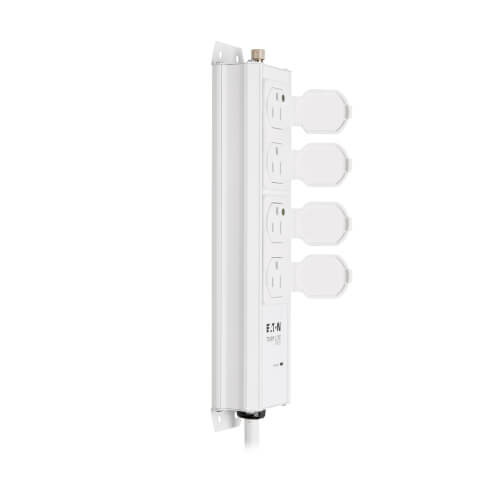

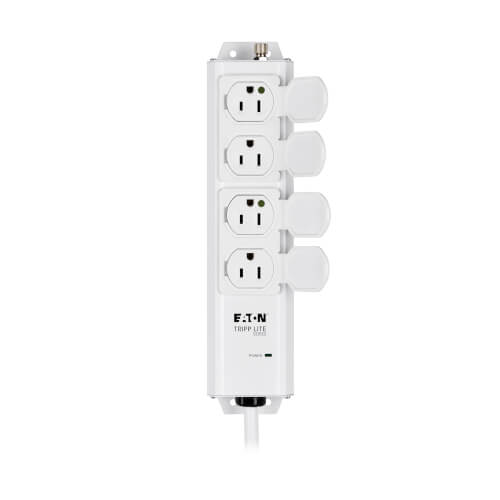

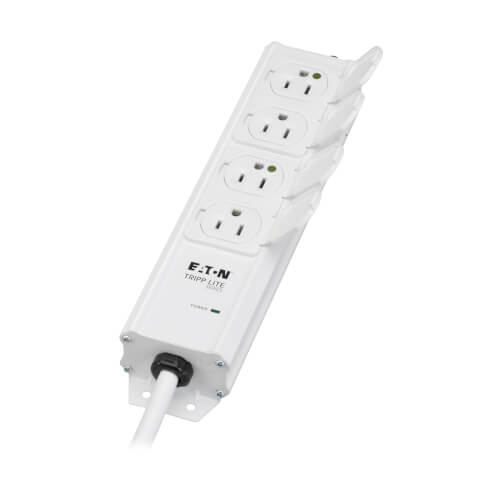

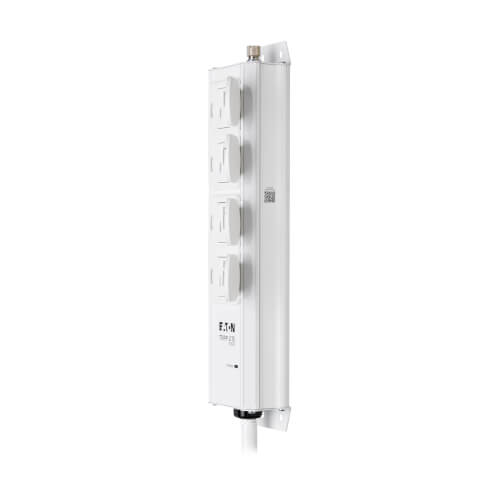

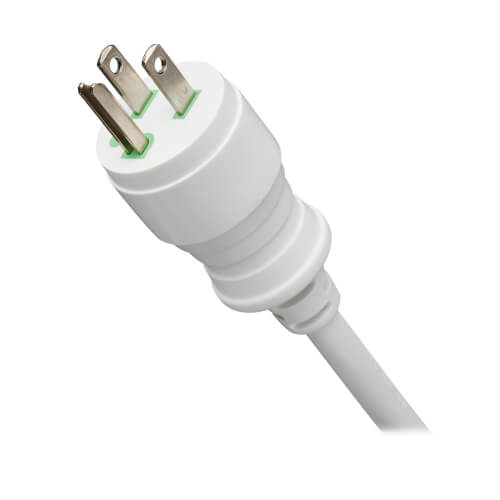

The PS-406-HGULTRA Medical-Grade Power Strip is UL 2930 compliance and agency listing, making it ideal for standalone use in all patient care vicinities. This 120V, 60 Hz power strip features a NEMA 5-15P-HG hospital-grade plug and four NEMA 5-15R-HG hospital-grade outlets that include integrated locking safety covers.
PEGT, External Grounding Terminal provides a redundant path to ground for medical equipment. This reduces the risk of electric shock in case of insulation failure or ground fault.
The power strip is protected by a antimicrobial powder coating. Antimicrobial protection helps prevent the growth of bacteria, viruses, fungi, mold and mildew.
Mounting tabs and flanges let you install the PS-406-HGULTRA on a wide variety of surfaces. Aluminum housing ensures safety and is guaranteed to last a long time in demanding environments.

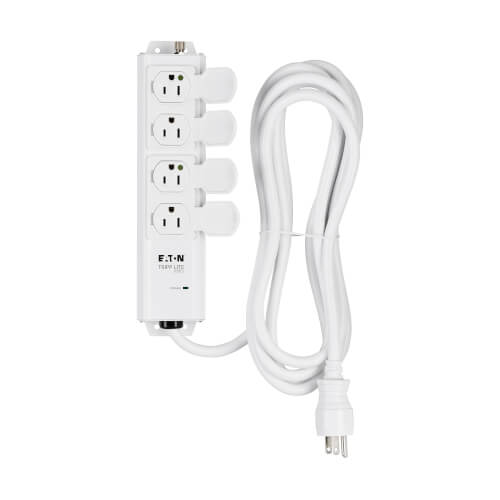

With a switchless design that prevents accidental shutoff and a 6-foot (1.8-meter) power cord that can reach a distant power source, the PS-406-HGULTRA is a recommended replacement for all non-compliant power strips.
Features
Power Distribution Anywhere in Any Medical Facility
- Ideal for standalone use in patient care vicinities, therapy rooms, imaging environments and administrative areas
- 120V 60 Hz power strip complies with UL 2930 specifications
- Access product specifications instantly with QR code integration ensuring critical documentation is available when and where it’s needed
Exclusive Antimicrobial Protection
- Antimicrobial coating helps resist the growth of bacteria, viruses, fungi, mold and mildew
Versatile Medical-Grade Solution
- 4 NEMA 5-15R-HG hospital-grade outlets provide consistent power
- 6 ft. (1.8 m) power cord provides ample reach to the power source
- Aluminum housing for long life in demanding environments
Premium Safety Features
- Integrated locking outlet safety covers block access to unused outlets
- PEGT, External Grounding Terminal provides a redundant path to ground for medical equipment
- Switchless design prevents accidental shut-off
Ready to Use Right Out of the Box

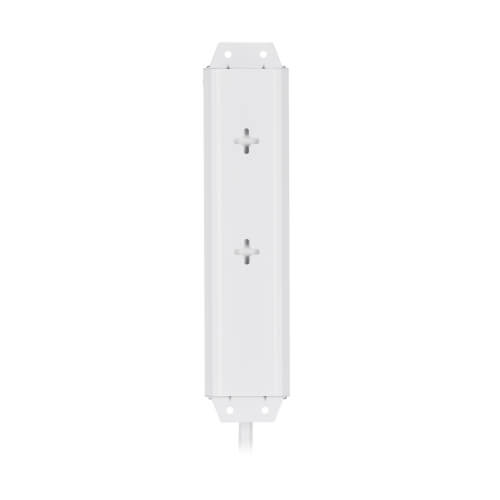

- Built-in mounting tabs and flanges for easy installation on a variety of surfaces
Package Includes
- PS-406-HGULTRA UL 2930 Medical-Grade Power Strip
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 03733219243 |
INPUT
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | 15A, 120V/125V |
| Input Plug Features | Hospital Grade Plug |
| Voltage Compatibility (VAC) | 120; 125 |
| Input Plug Type | NEMA 5-15P-HG |
| Input Cord Length (ft.) | 6 |
| Right-Angle Plug | No |
OUTPUT
| Frequency Compatibility | 60 Hz |
| Output (Watts) | 1875 |
| Output Receptacles | (4) 5-15R-HG |
| Transformer Accommodation | No |
| Outlet Orientation | Single row of 4 |
USER INTERFACE, ALERTS & CONTROLS
| Switches | Switchless |
PHYSICAL
| Color | White |
| Material of Construction | Aluminum |
| Power Cord Color | White |
| Housing Color | White |
| Mounting Holes or Slots | Yes |
| Outlets Measurement (Center to Center) | 81.6MM |
| Receptacle Color | White |
| Shipping Dimensions (hwd / in.) | 12.87 x 6.10 x 0.50 |
| Shipping Weight (lbs.) | 2.65 |
| Unit Dimensions (hwd / in.) | 11.020 x 2.500 x 1.790 |
| Unit Weight (lbs.) | 2.21 |
| Mounting Details | KEYHOLES |
ENVIRONMENTAL
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 14° to 122°F (-10° to 50°C) |
| Operating Humidity Range | 10% to 90% RH |
| Storage Humidity Range | 5% to 95% RH |
FEATURES & SPECIFICATIONS
| Antimicrobial | Yes |
| Built-In Circuit Breaker | Yes |
| Grounding | PEGT, External Ground Terminal (UL2930 requirement) |
STANDARDS & COMPLIANCE
| Product Certifications | UL 2930 |
| Product Compliance | NFPA 99: 10.2.3.6; RoHS |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
